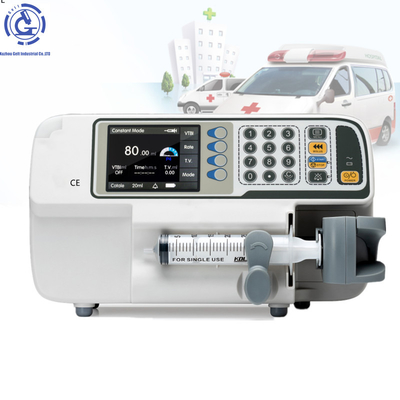

Medical Support Syringe Pump Target Infusion Infusion Syringe Pump For Animal Venous Anesthesia

1 Set
MOQ
$338.00(1 - 19 Sets) $330.00(20 - 49 Sets) $325.00(50 - 99 Sets) $320.00(>=100 Sets)
Preis
Medical Support Syringe Pump Target Infusion Infusion Syringe Pump For Animal Venous Anesthesia
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: G-P01S
Power Source: Electric
Warranty: Lifetime
After-sale Service: Return and Replacement
Material: Metal, Plastic
Shelf Life: 1years
Quality Certification: CE ISO
Instrument classification: Class II
Safety standard: GB/T18830-2009
Product name: syringe pump for animal venous anesthesia
Display: 3.5'' Large LCD screen
Weight: 1.7kgs
warranty period: 12 month warranty period, but lifelong free maintain
Remote control function: Support
Multi injection modes: V mode, T mode, and body weight mode
Drug Library Mode: Support
Syringe Size: 5ml,10ml,20ml,30ml,50/60ml,auto-recognition
Software Upgrade: Upgrade the software with USB
Dimension: 275mm*145 mm*160mm
Grundinformation
Zertifizierung: CE ISO
Model Number: G-P01S
Zahlung und Versand AGB
Packaging Details: Carton with waterproof film
Produkt-Beschreibung
Syringe pump medical pump target infusion infusion syringe pump for animal venous anesthesia
Product Description

Main features:

3.5'' Large LCD screen, with different colors show.
Time display, convenience for show and time memory. Simultaneous display: Time, Battery, Injection State, Mode, Speed, Injection volume and time, Syringe Size, Alarm sound, Block, Accuracy, Body weight, Drug, dose and liquid amountRemote control function, can adjust speed, time, volume and drug amount directly, easier operation, save doctor and nurse's time Advanced technology, mainly based on Linux system, more safe and steady. All technical are designed by ourself, further update is available. Multi injection modes: V mode, T mode, and body weight modeAlarm:including all abnormal conditions alarm system, with visible, audible and details show on the screen. Double CPU- Safter Injection ;Big Brightness LCD -Display Visually;Numeric keypad -Very User Friendly;Double Occlusion Detector -Safer Infusion ;Occlusion, air-in-lin, audio ,visual alarm volume adjustable;3000mAh Lithium Battery Backup life: >=9hour
Specification
Injection Mode
Constant Rate, Time Mode ,, Drug weight, Micro-Mode, Sequential , Drug Library Mode,
Syringe Size
5ml、10ml、20ml、30ml、50/60ml，auto-recognition
Flow Rate
5ml：0.10ml/h-60.00ml/h 10ml：0.10ml/h-300.00ml/h
20ml：0.10ml/h-400.00ml/h 30ml：0.10ml/h-600.00ml/h
50/60ml：0.10ml/h-1200.00ml/h
Increment
0.01ml/h
Preset Time
1s～99hr59min59s
Parameter Changed during Injection
Support change of VTBI, flow rate during injection
Accuracy
≤±2%（±1% mechanical accuracy included）
Preset Volume(VTBI)
0.10-9999.99ml&empty
Accumulated Volume
0.00-9999.99ml
Purge Rate
5ml：30.00-60.00ml/h 10ml：150.00-300.00ml/h
20ml：200.00-400.00ml/h； 30ml：300.00-600.00ml/h
50ml：600.00-1200.00ml/h
Bolus Rate
5ml：0.10ml/h-60.00ml/h 10ml：0.10ml/h-300.00ml/h
20ml：0.10ml/h-400.00ml/h 30ml：0.10ml/h-600.00ml/h
50/60ml：0.10ml/h-1200.00ml/h
KVO
0.10 -5.00ml/h adjustable
Occlusion Pressure
8 level adjustable，20Kpa-150Kpa，dynamically pressure value display.
Alarm
Finished, near finished, near empty, empty, occlusion, syringe disconnected, no operation, parameter error, syringe size error,
low battery, battery lost, battery ran out, AC power lost, abnormal injection, communication error
Syringe Management
Preset 20 syringe brands, can add or edit the brand, accept all brands after calibration
Display
3.5’TFT color LCD, 10 level brightness adjustable
Power Supply
AC Power：100V-240V，50/60Hz，≦45VA
Communication Port
USB,RJ45 for future use, Ethernet Port
Battery
Rechargeable Lithium battery, DC11.1V，3000mAh；operating time: ≥9h @5ml/h
Alarm Voice
Standard Medical Alarm Voice with Mute function, 8 levels adjustable.
Event Log
10000 event log, can be transmitted to PC with USB
Software Upgrade
Upgrade the software with USB
Operation Environment
+5℃- +40℃，Relative humidity：20%-90%；Atmospheric pressure：70 – 106 Kpa
Classification
Class II， Type CF；IPX4
Dimension
Size：275mm×145 mm×160mm，Weight：2.1kg
Other Function
Double CPU, Password function, Multi Language, Pressure Release function, 90 ºrotable IV pole, 4 soft function key, key lock
function, numeric keypad, Pause Function, etc.
Application
Intravenous injection
